Flash Image

NanoKVM Go is usually shipped with an image already flashed. If the device boots normally, you can skip this step at first.

Preparation

Before flashing, prepare the following items:

  • NanoKVM Go;
  • a SIM eject pin or another tool that can press and hold the flashing-mode button;
  • a USB data cable;
  • a Windows computer;
  • the NanoKVM Go image file;
  • the ImageUSB flashing tool.

Download the Image

Download the latest NanoKVM Go image from GitHub.

Image download link: NanoKVM-Go Releases

Download the Flashing Tool

Download and install ImageUSB.

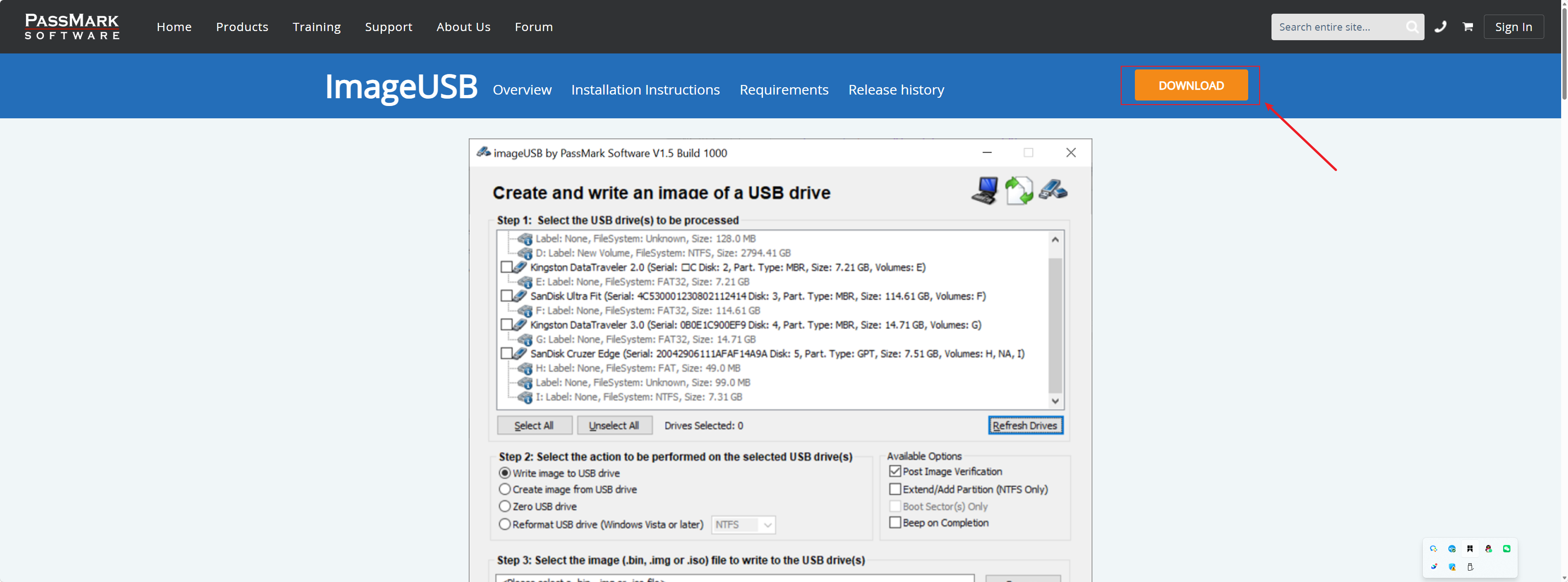

ImageUSB download page

Enter Flashing Mode

  1. Disconnect the USB cable from NanoKVM Go to power off the device.

  2. Open ImageUSB on the computer.

  3. Insert the SIM eject pin through the opening and press and hold the flashing-mode button on NanoKVM Go.

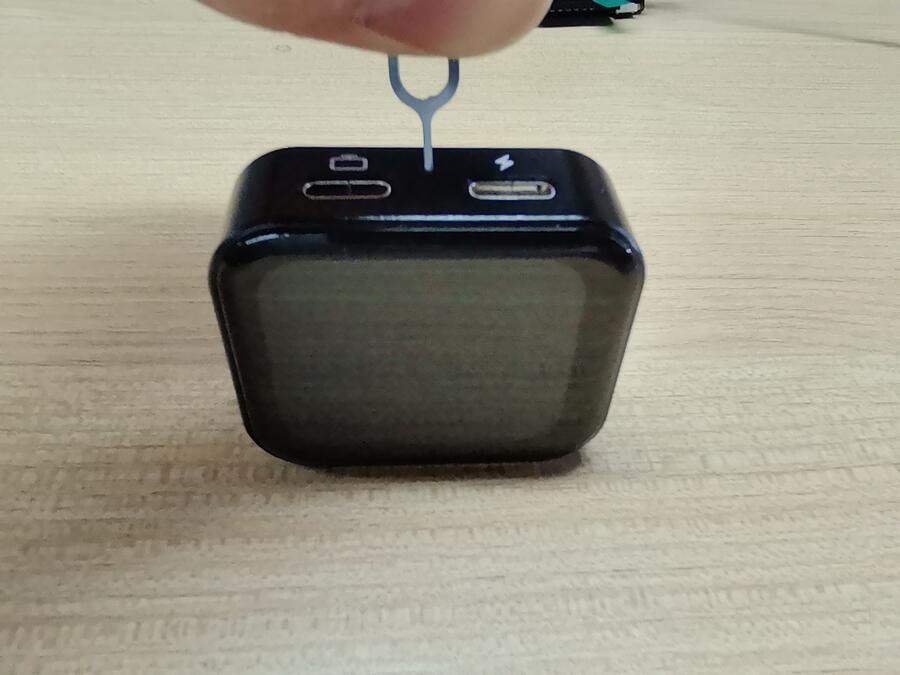

Press and hold the NanoKVM Go flashing-mode button with a SIM eject pin

  1. Keep holding the flashing-mode button, insert the USB data cable connected to the computer into the NanoKVM Go data port (Data Port).

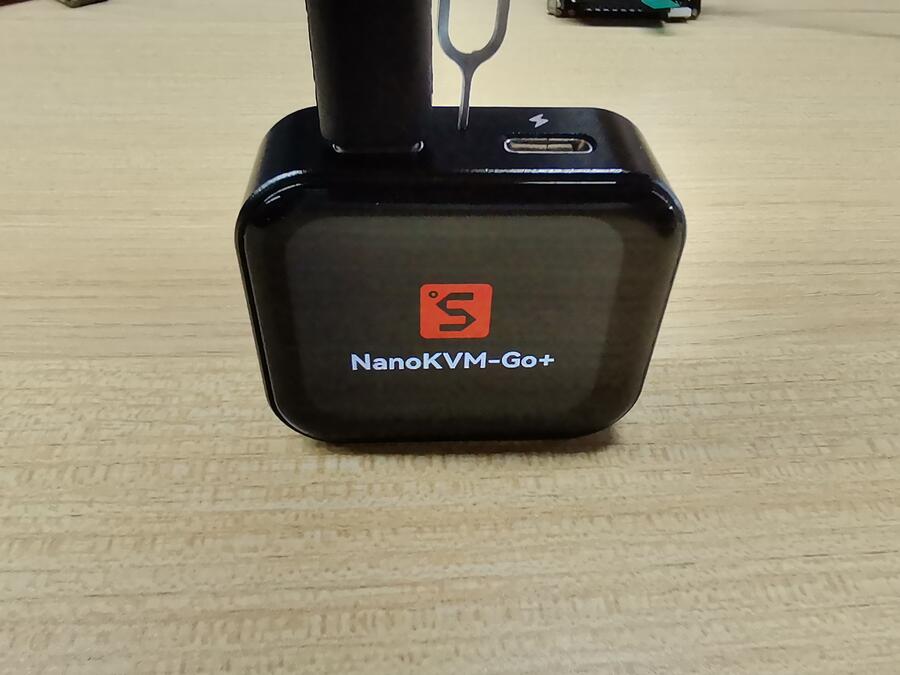

Hold the flashing-mode button and connect the NanoKVM Go data port

  1. Click the Refresh Drives button in ImageUSB.

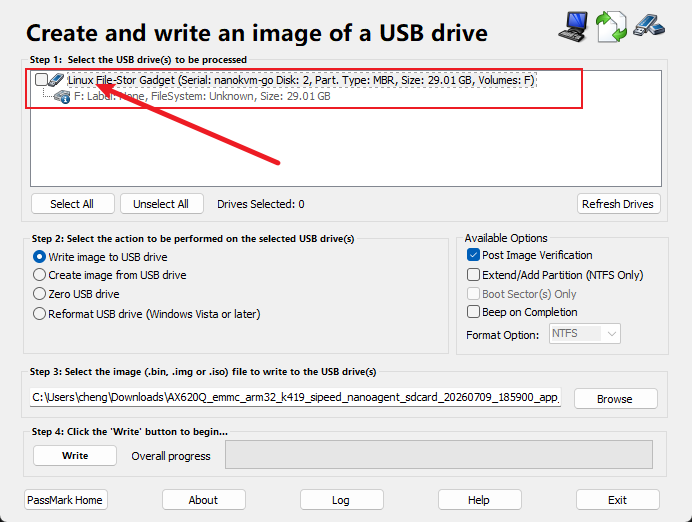

NanoKVM Go device detected in ImageUSB

  1. Release the flashing-mode button after the device is detected.

Flash the Image with ImageUSB

  1. In ImageUSB, select the USB device corresponding to NanoKVM Go.

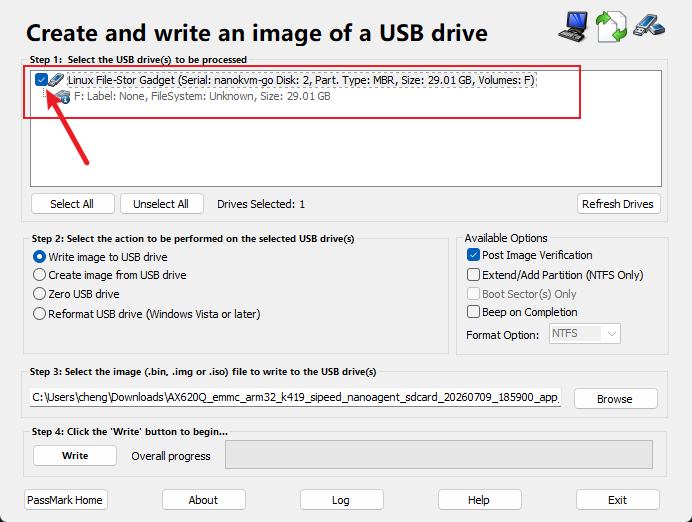

Select NanoKVM Go in ImageUSB

  1. Select the mode for writing an image.

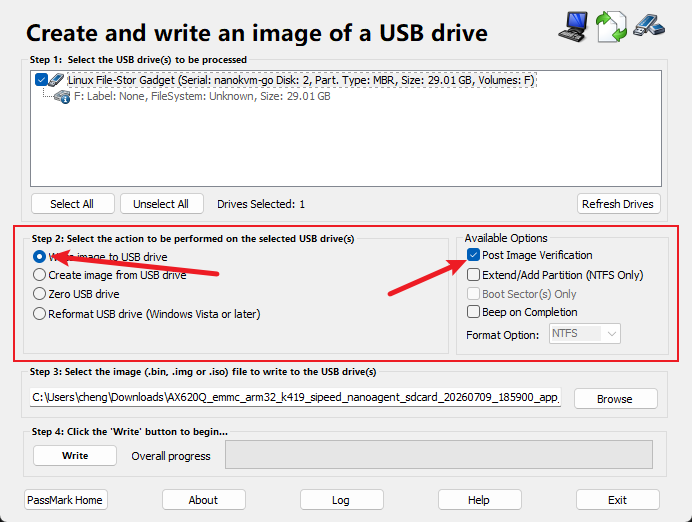

Select write image mode in ImageUSB

  1. Select the downloaded NanoKVM Go image file.

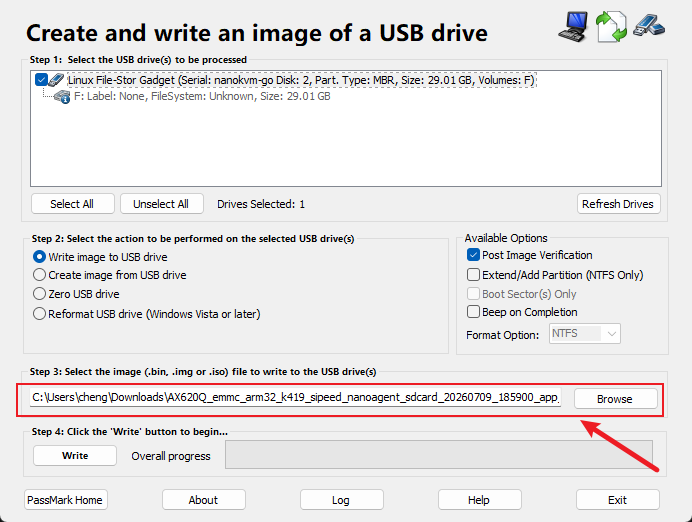

Select the NanoKVM Go image in ImageUSB

  1. Click the write button to start flashing.

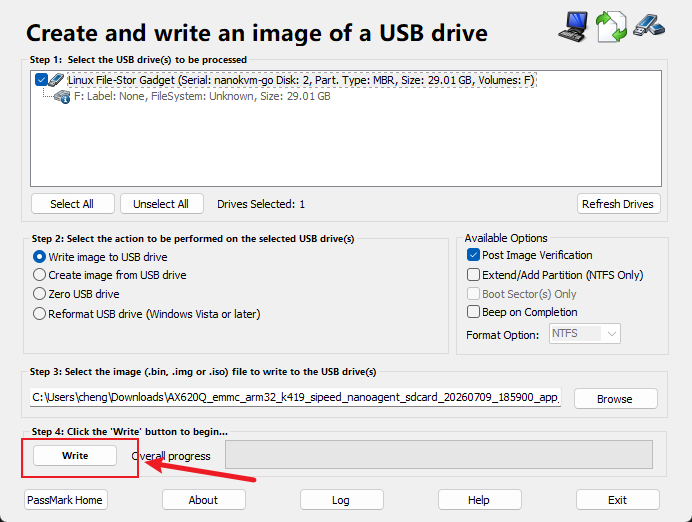

Click the ImageUSB write button

  1. Confirm the write operation when prompted.

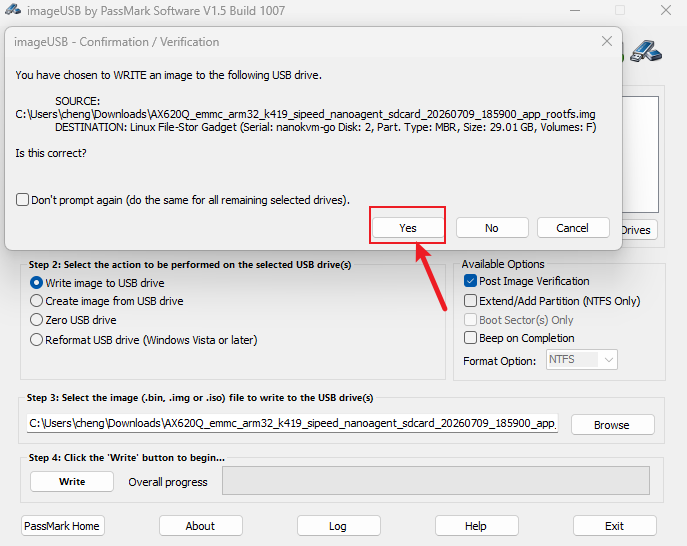

Confirm the ImageUSB write operation

  1. Wait for flashing to complete.

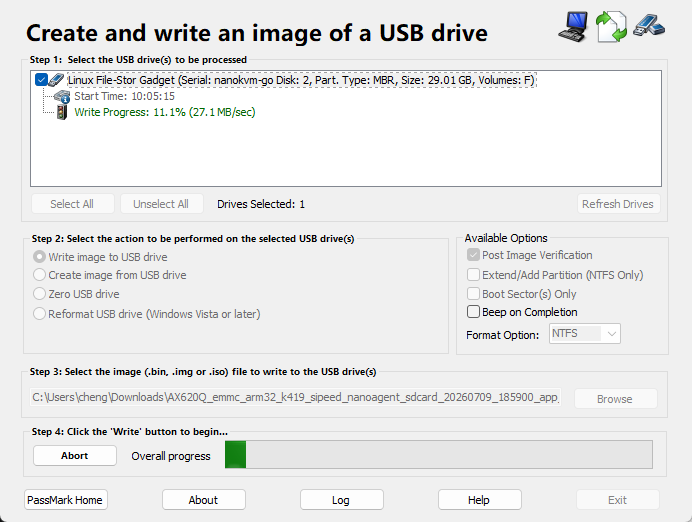

ImageUSB writing the image

  1. Flashing succeeded.

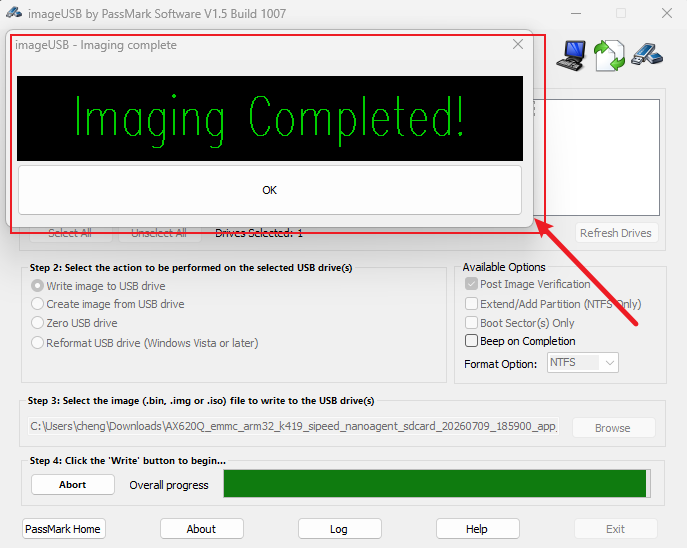

ImageUSB flashing complete

After flashing is complete, safely eject the USB device, disconnect the USB cable, reconnect NanoKVM Go, and wait for the system to boot.

Do not disconnect USB or close ImageUSB during flashing. Otherwise, the image may fail to write correctly.
