PMOD_Thermal32

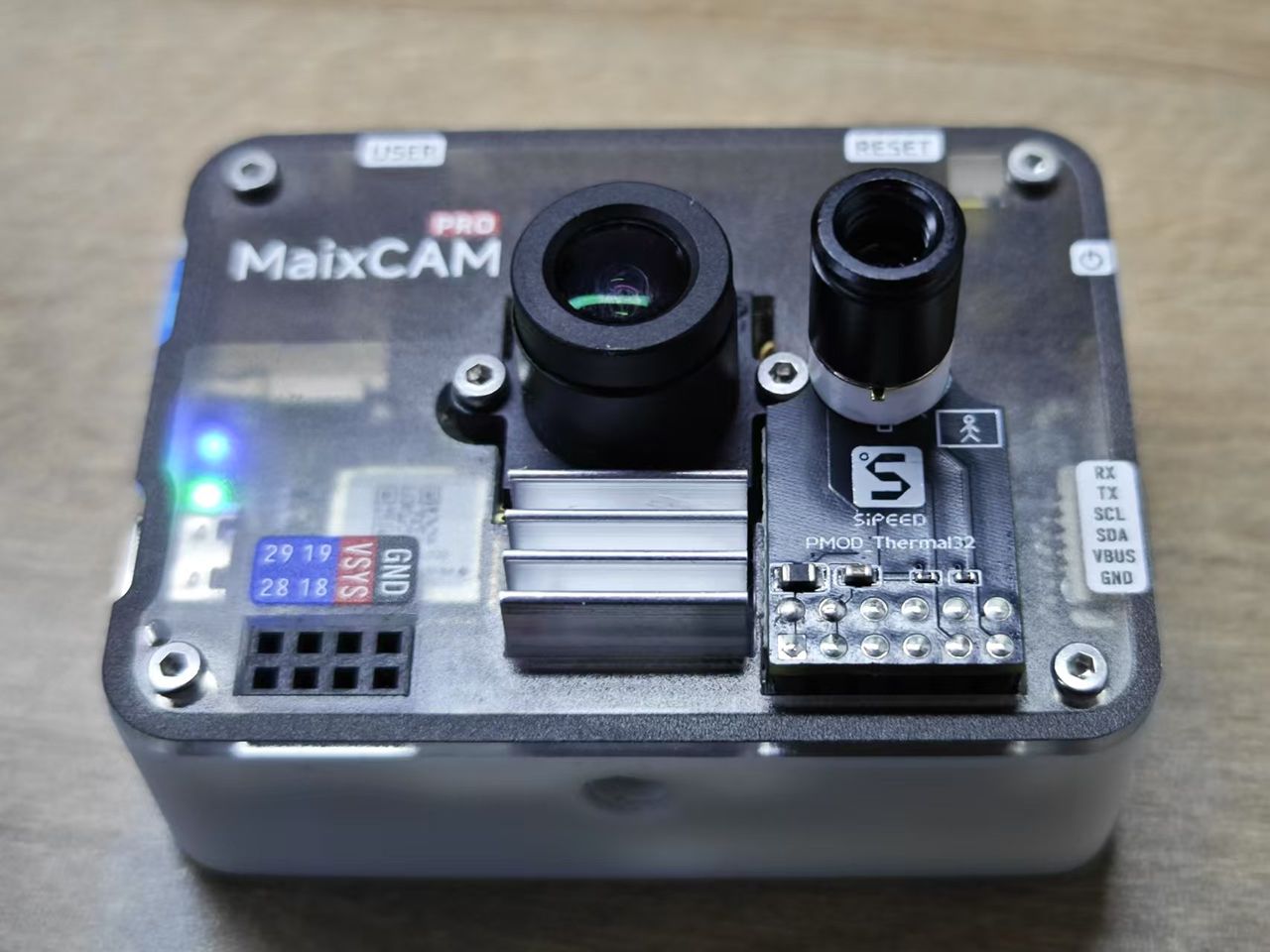

The PMOD_Thermal32 module is a low-cost thermal imaging module compliant with the PMOD interface standard. It can be directly inserted into the PMOD slot of the MaixCAM Series and combined with a visible light camera to achieve dual-light fusion functionality.
| Module Name | PMOD_Thermal32 |
|---|---|
| Resolution | 32x24 |
| Temperature Range | -40°C to 450°C |
| Field of View (FOV) | 55° x 35° |
| Frame Rate | 1~30fps |
| Interface | I2C |
PMOD_Thermal32 Installation Guide
| Platform | Installation Guide |
|---|---|
| MaixCAM Pro |  |
| MaixCAM2 |  |

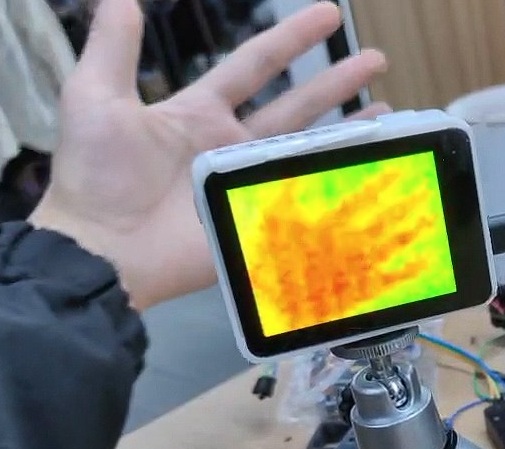

Thermal Imaging with Pseudo-color Display

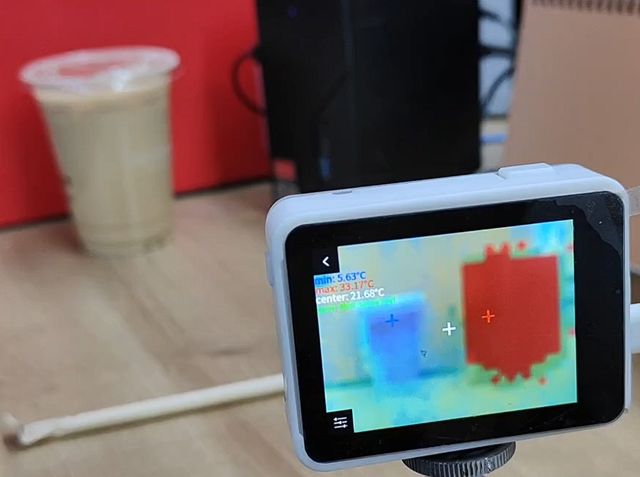

Thermal Imaging + Visible Light Fusion Display
Reference Code:
GitHub Repository
PMOD_TOF100

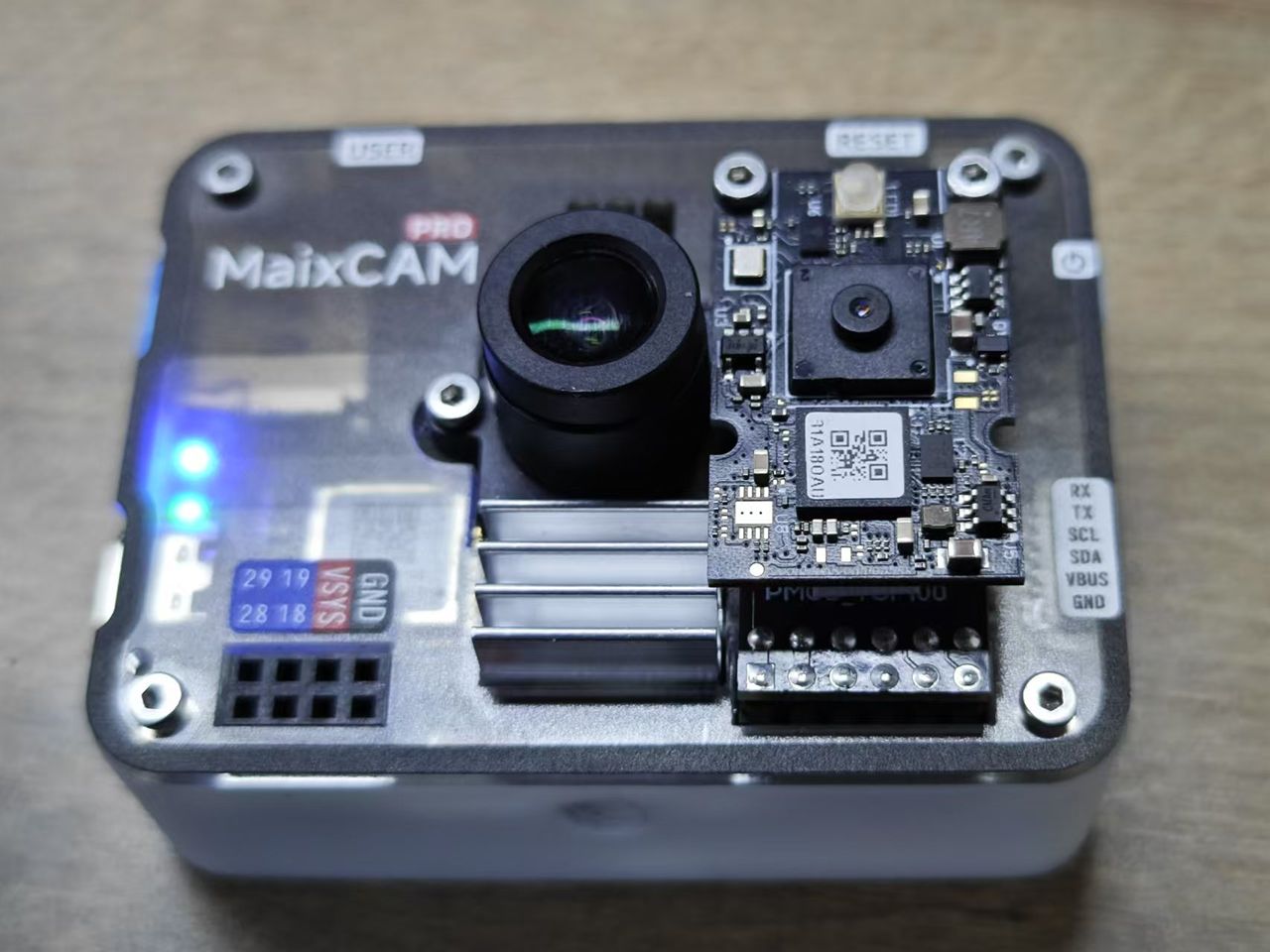

The PMOD_TOF100 module is a low-cost array ToF module compliant with the PMOD interface standard. It can be directly inserted into the PMOD slot of the MaixCAM Series and combined with a visible light camera to achieve dual-light fusion functionality.
| Module Name | PMOD_TOF100 |
|---|---|
| Resolution | 100x100, 50x50, 25x25 |
| Measuring Range | 0.2~2.5m |
| Field of View (FOV) | 70°H x 60°V |
| Laser Emitter | 940nm VCSEL |
| Frame Rate | 100x100: 6fps, 50x50: 22fps, 25x25: 30fps |
| Interface | SPI |
PMOD_TOF100 Installation Guide
| Platform | Installation Guide |
|---|---|
| MaixCAM Pro |  |
| MaixCAM2 |  |

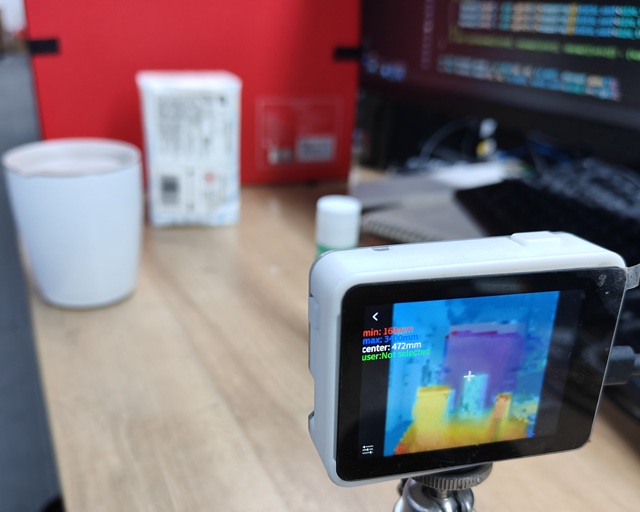

Depth Imaging with Pseudo-color Display

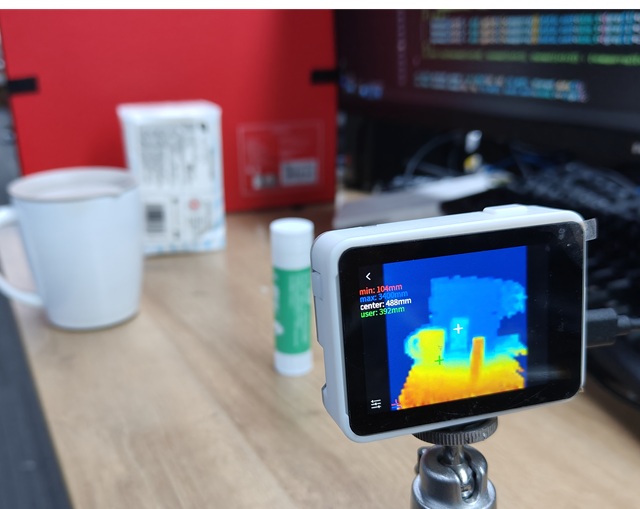

Depth + Visible Light Fusion Display
Reference Code:
GitHub Repository
PMOD_Thermal160
The PMOD_Thermal160 module is a low-cost thermal imaging module compliant with the PMOD interface standard. It can be directly inserted into the PMOD slot of the MaixCAM Series and combined with a visible light camera to achieve dual-light fusion functionality.
| Module Name | PMOD_Thermal160 |
|---|---|
| Resolution | 160x120 |
| Field of View (FOV) | -20～120℃ |
| Laser Emitter | 34°x26° |
| Frame Rate | 25fps |
| Interface | Image:UART/USB Control:I2C |
| NETD | <50mK @25℃ |
PMOD_Thermal160 Installation Guide
| Platform | Installation |
|---|---|
| MaixCAM Pro |  |
| MaixCAM2 |  |
Reference code will be supported in the future.
PMOD_Thermal256
The PMOD_Thermal256 module is a low-cost thermal imaging module compliant with the PMOD interface standard. It can be directly inserted into the PMOD slot of the MaixCAM Series and combined with a visible light camera to achieve dual-light fusion functionality.
| Module Name | PMOD_Thermal256 |
|---|---|
| Resolution | 256x192 |
| Field of View (FOV) | -15～150℃ (High Gain), 50～550℃ (Low Gain) |
| Laser Emitter | 56°x42° |
| Frame Rate | 25fps |
| Interface | Image:SPI Control:I2C |
| NETD | <50mK @25℃ |
PMOD_Thermal256 Installation Guide
| Platform | Installation |
|---|---|
| MaixCAM Pro |  |
| MaixCAM2 |  |
Reference Code:
https://github.com/sipeed/MaixPy/tree/main/examples/ext_dev/sensors/tiny1c_example.py
To use this example, please first remove the code related to
x3c_192x256.
